When it comes to hydraulic systems, rod seals are arguably the most critical component of the entire sealing solution. They serve as the front line of defense, preventing hydraulic fluid from leaking out of the cylinder and keeping environmental contaminants from getting in. A properly selected rod seal doesn’t just maintain system pressure but also protects equipment longevity, minimizes maintenance, and ensures peak performance even in the most challenging applications.
At PSP Seals, we understand that choosing the wrong rod seal can lead to costly downtime, fluid loss, and premature component wear. That’s why we offer four distinct rod seal profiles, each engineered for specific environments and performance demands. This guide will walk you through your options at PSP Seals and help you determine the best profile for your system.
What Are Rod Seals and Why Do They Matter?
Rod seals are the primary sealing element within a hydraulic cylinder. They are designed to prevent pressurized fluid from escaping past the rod. They also help:
- Control internal pressure within the cylinder
Prevent environmental contamination when paired with a wiper seal
Extend component life by reducing wear and abrasion
Retain a thin film of lubrication on the rod to aid both the rod and wiper seals
Because they’re under constant movement and pressure, rod seals must be carefully selected based on the system’s duty level, pressure range, temperature, and operating conditions.
Meet PSP’s Rod Seal Profiles
Here’s a breakdown of PSP’s core four rod seal profiles, all designed to fit standard rod gland housings and serve a wide range of hydraulic applications:
RP1 – Extreme-Duty High-Pressure Rod Seal
Material: NBR energizer with trapezoidal profile
Design: Preloaded for superior low-pressure performance
Best For:
- Heavy-duty hydraulic systems
- Low-temperature environments
- Applications with large extrusion gaps
Why Choose RP1: This seal is ideal for harsh and rugged environments where pressure is high, temperatures are low, and you need maximum resistance to extrusion. Its preloaded design ensures a tight seal even at startup pressures.
RU1 – Rugged High-Reliability Rod Seal
Material: High-grade water-resistant Polyurethane
Design: Single-acting, dual-lip profile
Best For:
- Medium to heavy-duty cylinders
- Mobile hydraulic equipment and mining applications
Why Choose RU1: Built for longevity and reliability, the RU1 delivers zero leakage performance. Its robust Polyurethane construction makes it an excellent fit for tough environments requiring consistent, long-life sealing.
RU7 – Versatile Utility Rod Seal
Material: High-grade Polyurethane
Design: Single-acting, dual-lip configuration
Best For:
- Light to medium-duty cylinders
Secondary sealing behind a buffer seal in high-pressure systems
Why Choose RU7: The RU7 is a cost-effective and flexible option, commonly used as a direct replacement for U-cups or PolyPaks. It performs well across a variety of systems and can double as a secondary seal in more demanding settings.
RZ1 – Double-Lip Squeeze Seal
Material: Elastomeric sealing element with reinforced base
Design: Dual-lip, squeeze-type profile
Best For:
- Low to high-pressure hydraulic systems
- Applications needing extended seal life and enhanced sealing
Why Choose RZ1: This advanced profile delivers excellent sealing at both low and high pressures. Its squeeze-style design improves compression resistance, making it an ideal long-term sealing solution for variable conditions.

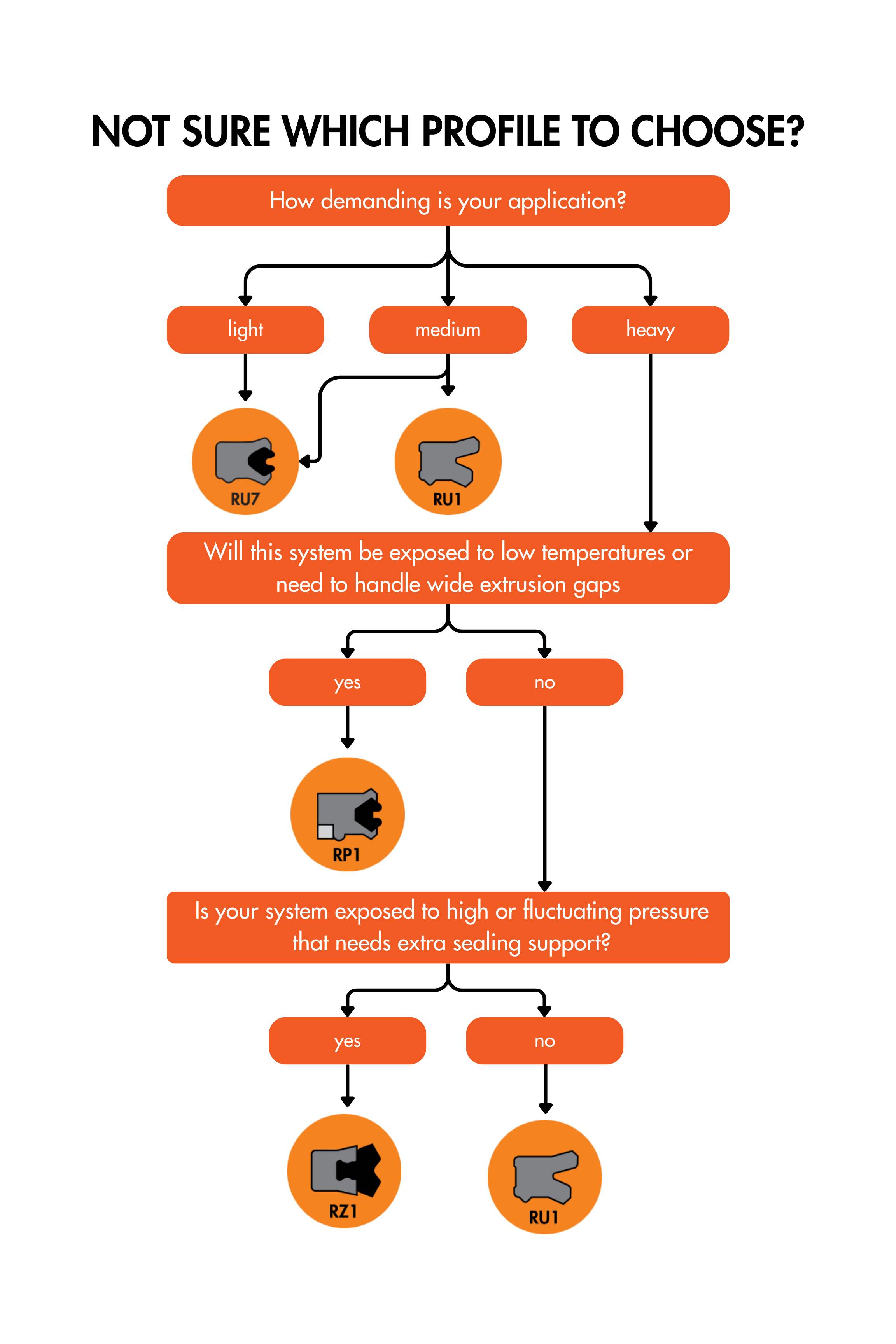

Need Help Choosing? Use Our Rod Seal Selector Flowchart
Still Not Sure? Let PSP Help
Whether you're building a new hydraulic system or replacing worn components, our team of sealing experts is ready to help you select the right rod seal for the job. We offer: Custom kitting services Expert technical support Fast counter sales from our Fort Wayne warehouse.
Need more detailed specs? Contact us here or download our Rod Seal Profile Data Sheets to compare.
RZ1 Profile Data Sheet RU7 Profile Data Sheet
RU1 Profile Data Sheet RP1 Profile Data Sheet
Seal It Right the First Time
Choosing the right rod seal doesn’t have to be a guessing game. Whether you need long life, extreme durability, or performance under high pressure, PSP Seals has the profile you need. Let’s get your hydraulic system running smoother, longer, and leak-free.
